INSTALLABLE INTERNALLY/TABLE OF INSTALLATION DIMENSIONS
※ Based on the 2-unit installation type, ( ) is the dimension for 1-unit installation. (Unit : mm)
pump caliber
Discharge amount (2 units)
A
B
C
D
E
F
G
(㎥/min)
(㎥/sec)
Φ300
16 ~ 26
0.27 ~ 0.43
1400(850)
550(-)
3000
1000
600
350
1100
Φ350
26 ~ 36
0.43 ~ 0.60
1600(985)
615(-)
3000
1000
650
370
1250
Φ400
36 ~ 48
0.60 ~ 0.80
1800(1090)
710(-)
3500
1250
700
410
1300
Φ500
48 ~ 72
0.80 ~ 1.20
2000(1160)
840(-)
3500
1250
800
450
1650
Φ600
72 ~ 100
1.20 ~ 1.67
2400(1390)
1010(-)
4000
1500
900
535
1900
Φ700
100 ~ 140
1.67 ~ 2.33
2800(1660)
1140(-)
4000
1500
1000
575
2100
Φ800
140 ~ 180
2.33 ~ 3.00
3200(1930)
1270(-)
4000
1750
1100
615
2350
Φ900
180 ~ 230
3.00 ~ 3.83
3600(2130)
1470(-)
5000
2000
1200
700
2550
Φ1000
230 ~ 300
3.83 ~ 5.00
4000(2400)
1600(-)
5000
2000
1300
740
2900
Φ1200
300 ~ 360
5.00 ~ 6.00
4800(2900)
1900(-)
5500
2250
1500
860
3000
FEATURES

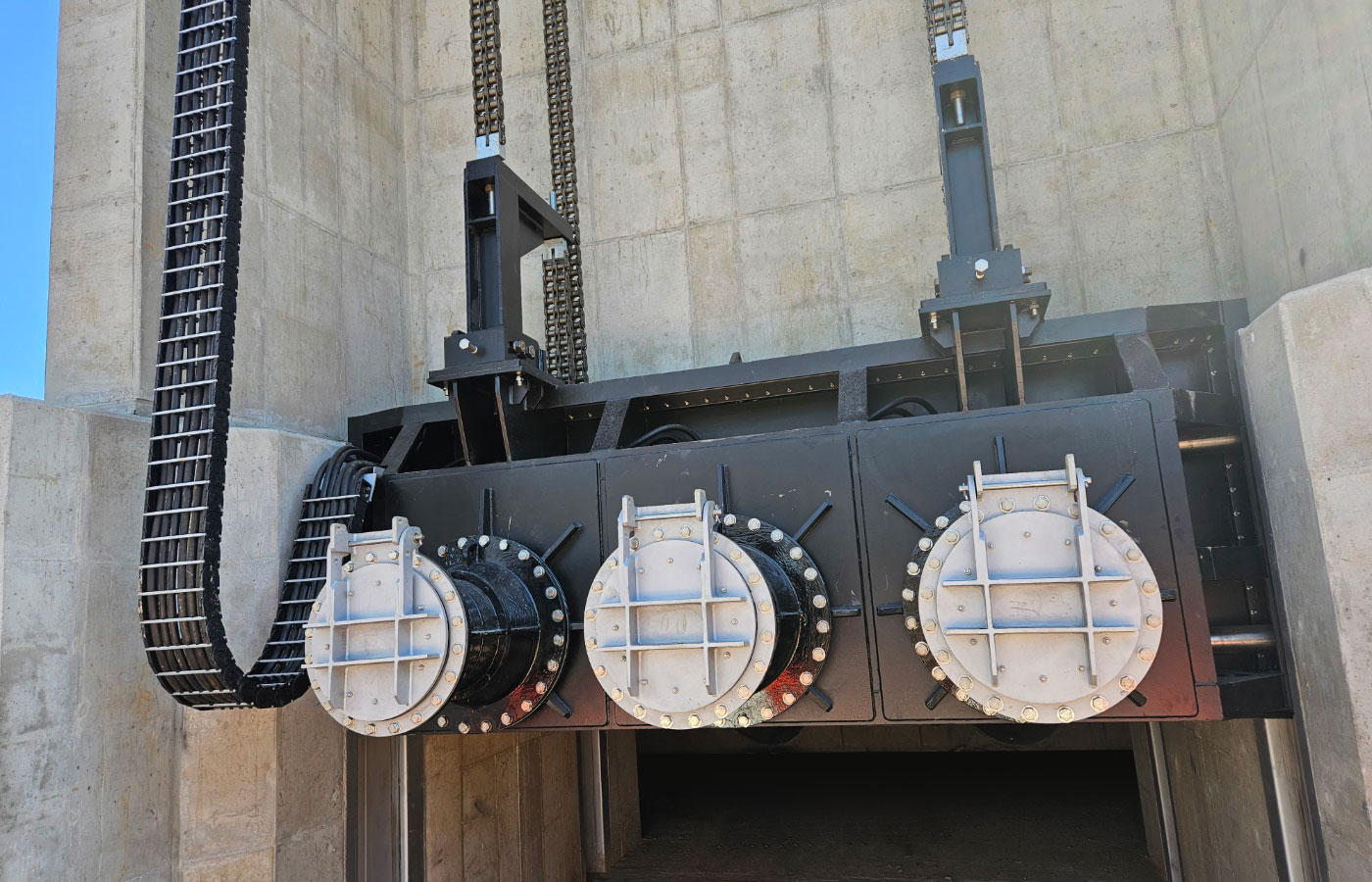

This drainage facility integrates a pump with the sluice gate, enabling concurrent operation of both functions.
This system offers an environmentally conscious and cost-effective solution, eliminating the requirement for a separate pump room while delivering functional and economic benefits.
Elevating the sluice gate streamlines pump maintenance procedures
ADVANTAGES OF INSTALLING INTERNALLY
Positioned alongside the water, the apparatus boasts simple operability and maintenance.
The proximity between the pump and vibration isolator minimizes the chances of foreign
particles infiltration.
With the pump situated waterside, it remains unaffected by external water load variations.
ADVANTAGES OF INSTALLING EXTERNALLY
An individual sluice gate is rendered redundant as the gate pump operates as a backup.
The discharge tank is not necessary due to the fact that the pump's discharge pressure
does not impact the culvert.
Only room for the vibration isolator needs to be allocated within the embankment.
INSTALLABLE EXTERNALLY/TABLE OF INSTALLATION DIMENSIONS
※ Based on the 2-unit installation type, ( ) is the dimension for 1-unit installation. (Unit : mm)
