GwangHee's product range is committed to quality management that places customer contentment at the forefront, encompassing design, production, and construction, all verified through ISO 9001 quality system certification. Notably, our wire rope type automatic conduction sluice gate, roller gate with automatic conduction sluice gate, turning gate, automatic lowering sluice gate, gate pump, link type dust removing machine, power rack-type winch, and one-touch winch find extensive application in disaster prevention and the streamlined management of water resources for enhanced efficiency.

GATE PUMP

4.0M x 1.5M x 1 set, D500mm x 45kw X 3 units

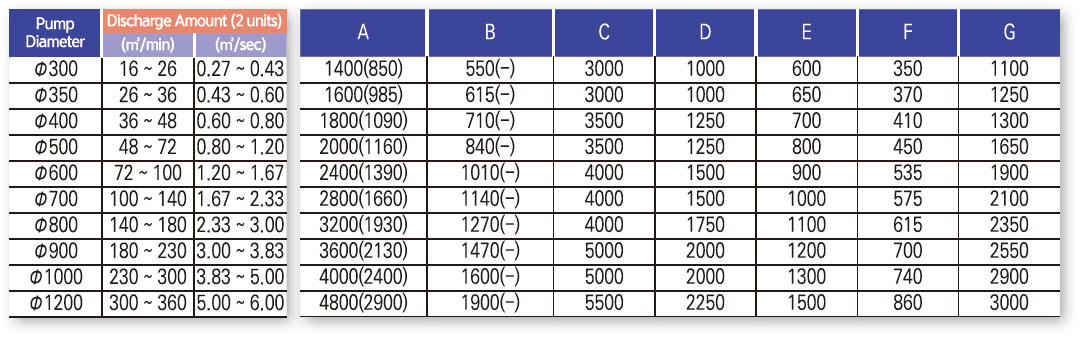

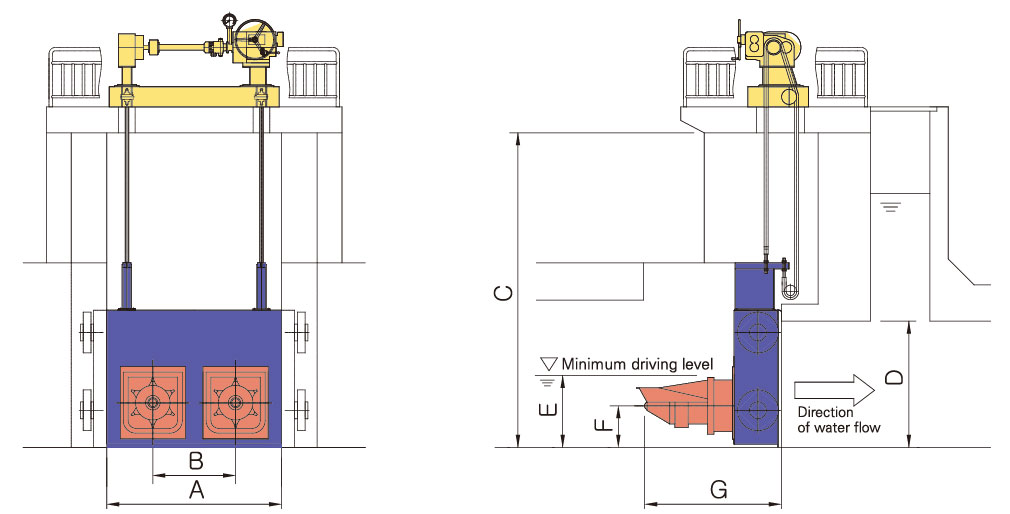

INSTALLABLE INTERNALLY/TABLE OF INSTALLATION DIMENSIONS

FEATURES
  • This drainage facility integrates a pump with the sluice gate, enabling concurrent operation of both functions.
  • This system offers an environmentally conscious and cost-effective solution, eliminating the requirement for a separate pump room while delivering functional and economic benefits.
  • Elevating the sluice gate streamlines pump maintenance procedures
ADVANTAGES OF INSTALLING INTERNALLY
  • Positioned alongside the water, the apparatus boasts simple operability and maintenance.
  • The proximity between the pump and vibration isolator minimizes the chances of foreign

    particles infiltration.

  •  With the pump situated waterside, it remains unaffected by external water load variations.

ADVANTAGES OF INSTALLING EXTERNALLY
  • An individual sluice gate is rendered redundant as the gate pump operates as a backup.
  • The discharge tank is not necessary due to the fact that the pump's discharge pressure

    does not impact the culvert.

  • Only room for the vibration isolator needs to be allocated within the embankment.

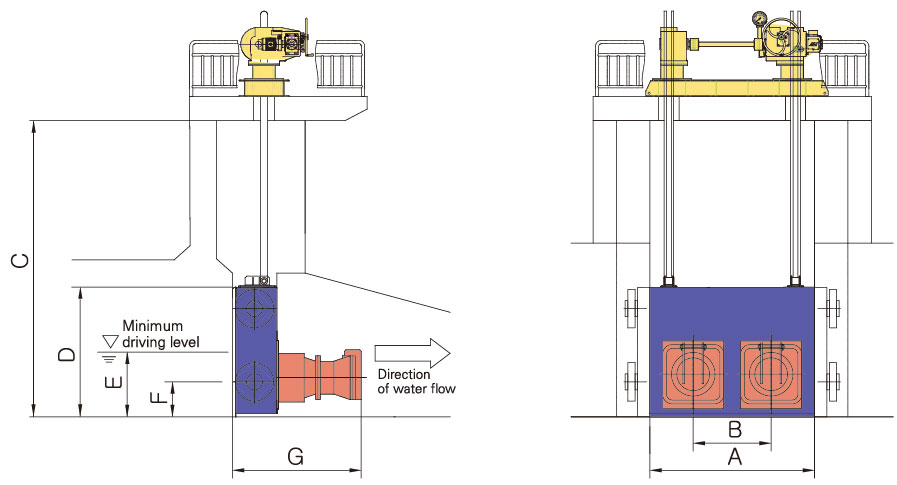

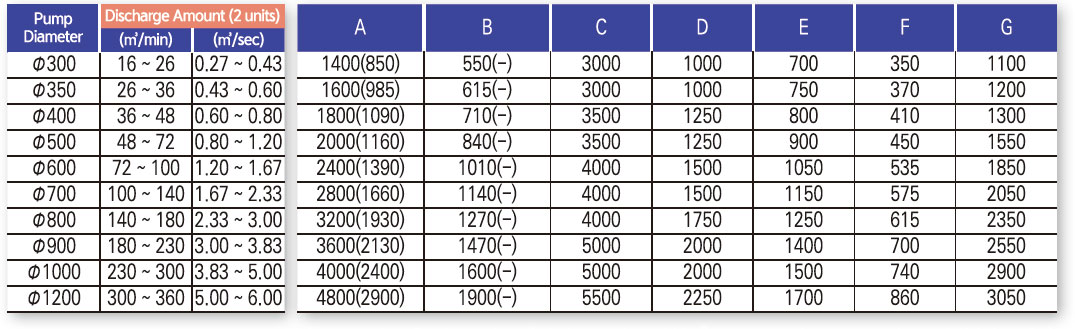

INSTALLABLE EXTERNALLY/TABLE OF INSTALLATION DIMENSIONS
